SKYLED APUS PRO 20" LED BAR – Compact Design, Maximum Lighting Performance

The SKYLED APUS PRO 20" is a professional LED light bar designed for drivers who demand powerful illumination, reliability and modern styling. Thanks to its reduced-height design, it can be installed in locations where standard LED bars cannot fit, making it ideal for integrated body installations, grilles and custom vehicle builds.

The APUS PRO features two high beam modes: a fully ECE-approved road mode for legal road use and a powerful OFFROAD mode designed to deliver maximum illumination in demanding environments.

With an impressive 11400 lm OFFROAD output, the light bar provides exceptional visibility in complete darkness, while the approved 5800 lm ECE mode ensures safe and compliant road operation.

The integrated dual-colour position light allows you to choose between stylish cold white illumination or distinctive amber lighting during installation by selecting the dedicated cable.

Built with a durable aluminium housing, polycarbonate lens and advanced IP68/IP69K protection, the SKYLED APUS PRO delivers reliable performance in rain, dust, mud and extreme conditions.

Key Features

• Compact 20" LED bar with low-profile design
• Two high beam modes:
  • ECE approved road mode
  • High-power OFFROAD mode
• Up to 11400 lumens of light output
• Beam distance up to 581 m (1 lux) in OFFROAD mode

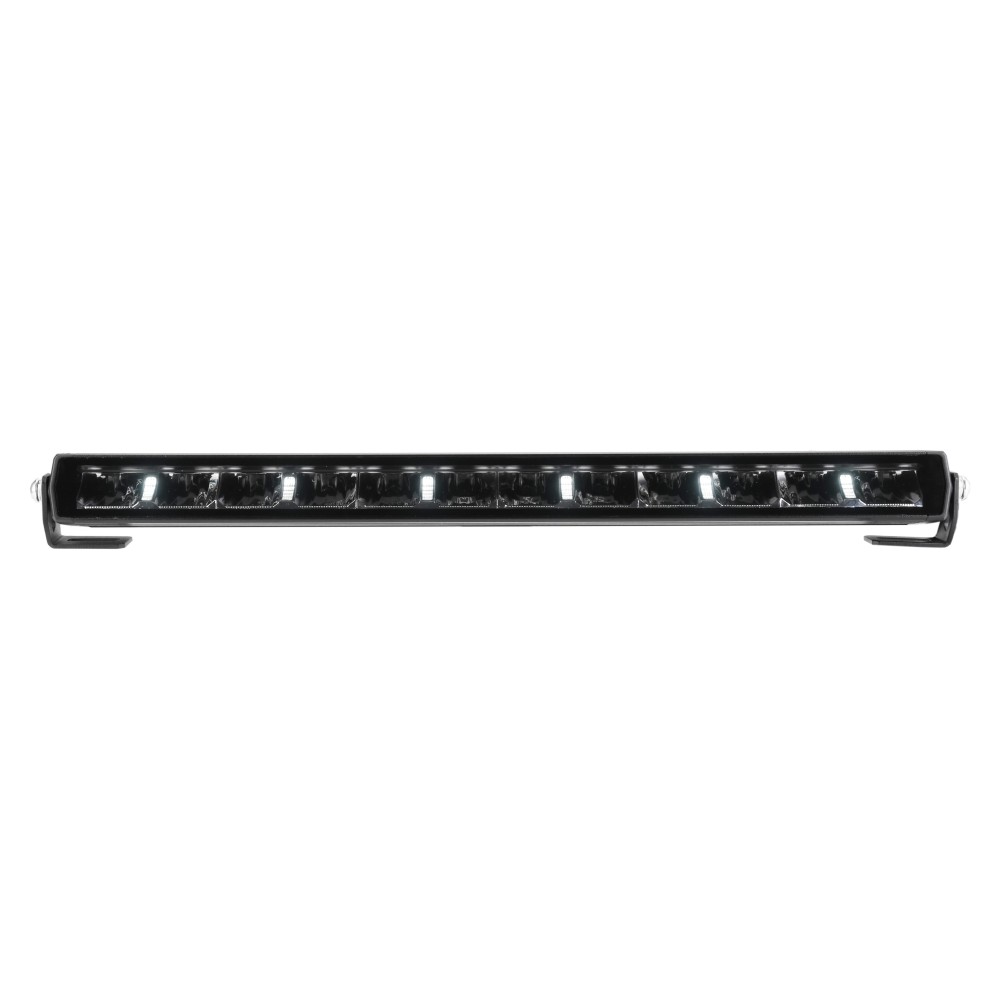

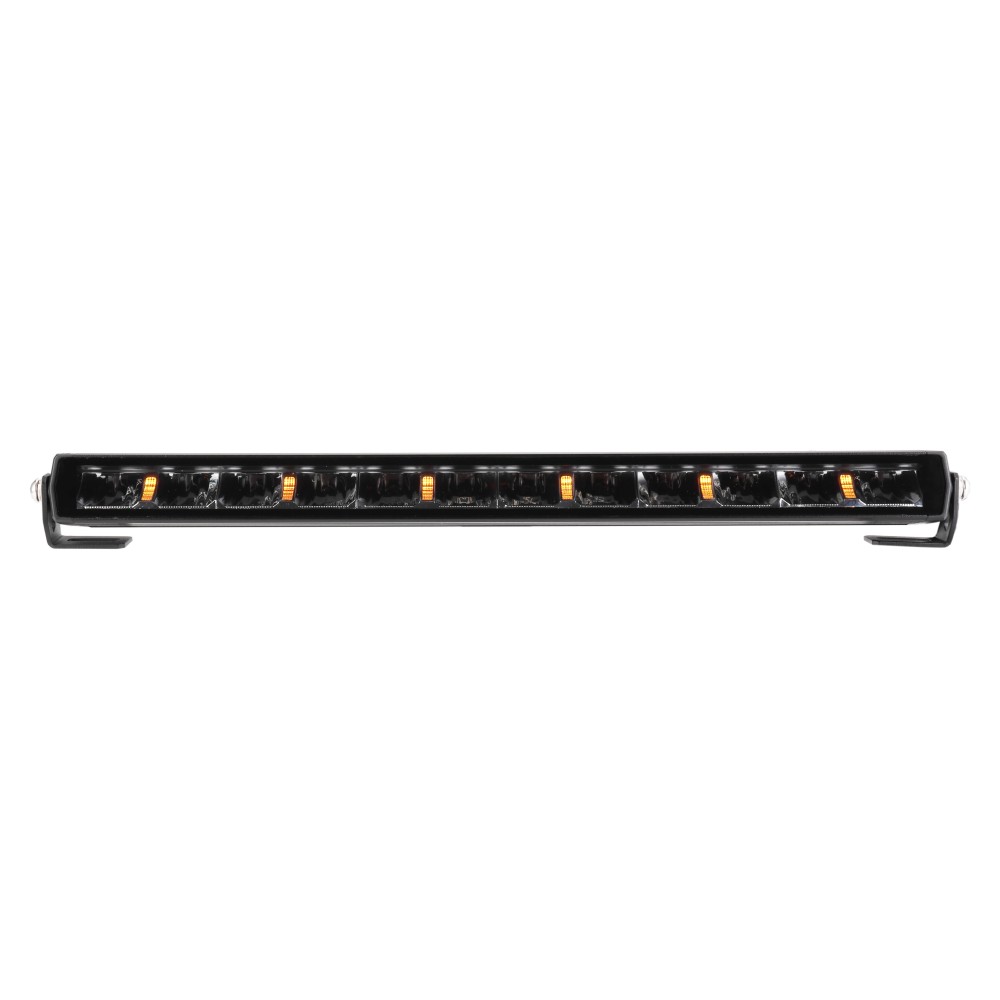

• White or amber position light
• Suitable for various vehicle types

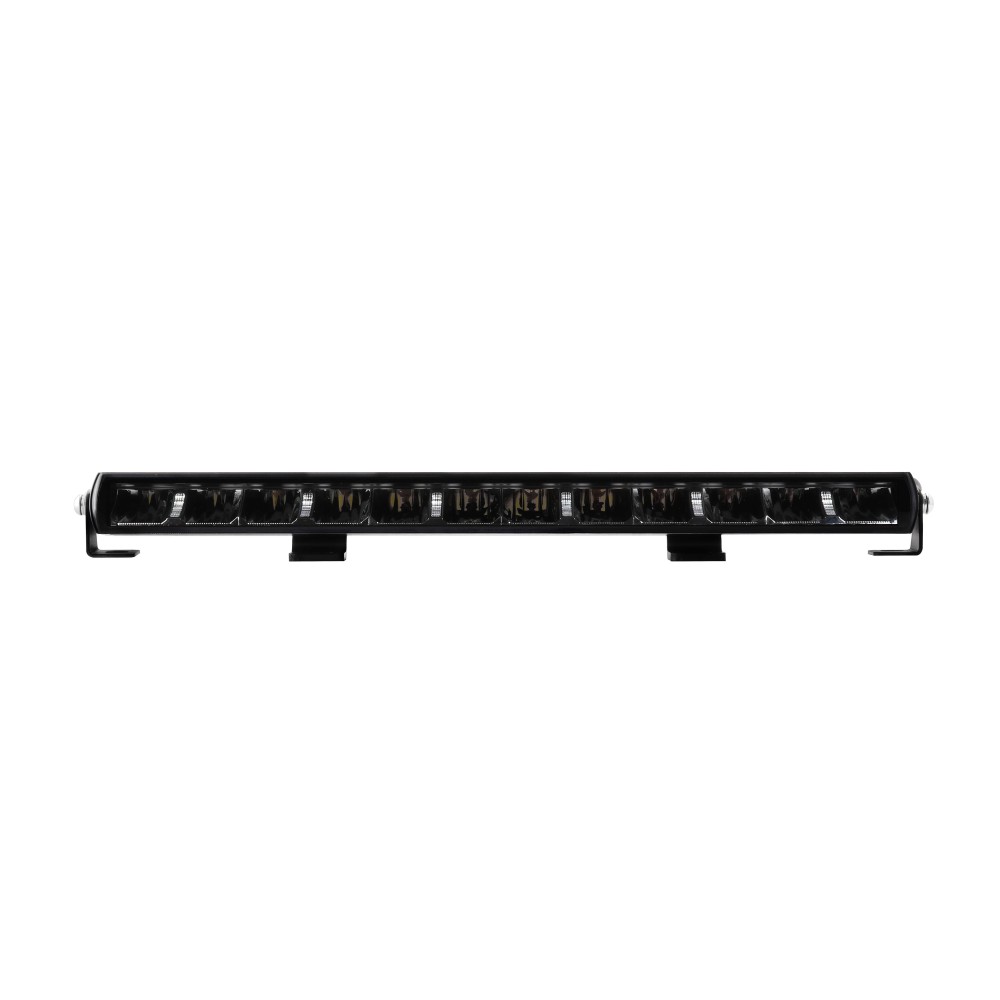

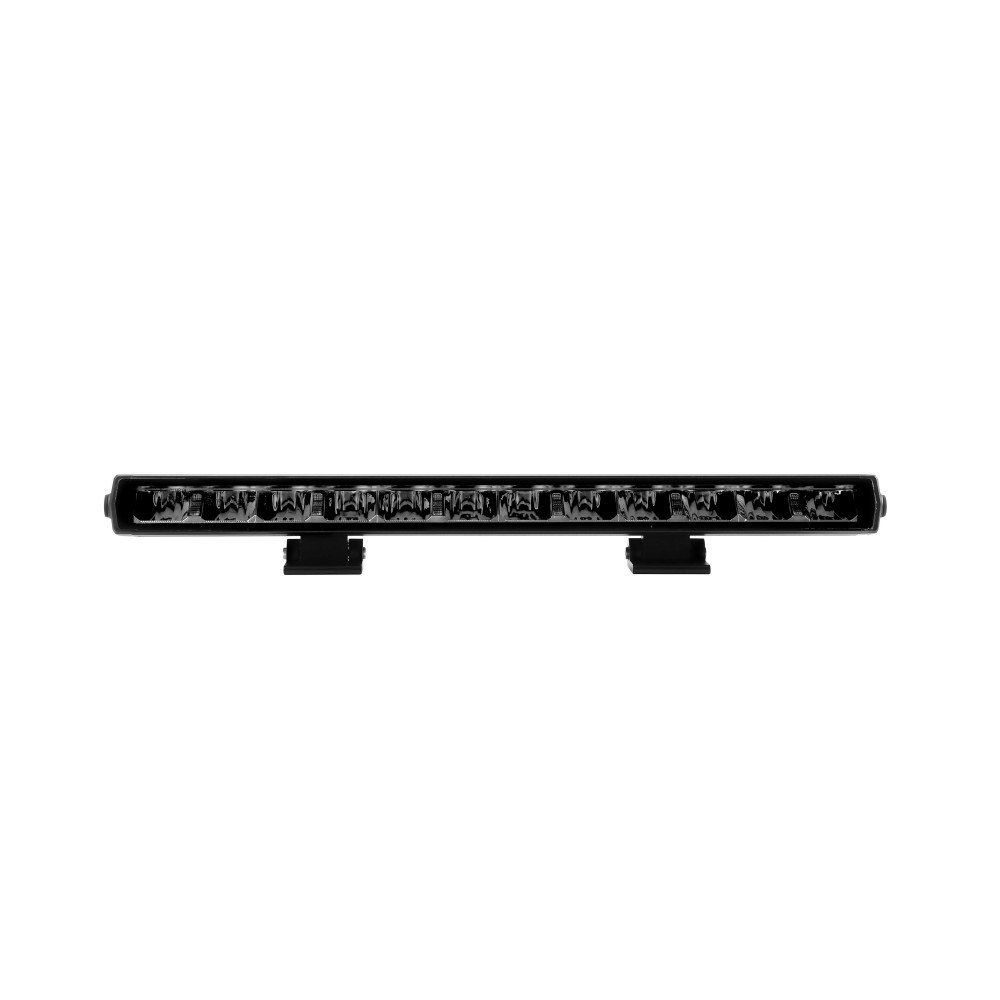

• Side and bottom mounting options
• IP68/IP69K waterproof and dustproof protection
• Durable aluminium housing
• Modern slim design

Technical Specifications

• Manufacturer: SKYLED
• Type: LED BAR
• Model: APUS PRO 20"
• Light output:
  • OFFROAD: 11400 lm (9500 lm actual)
  • ECE: 5800 lm (4200 lm actual)

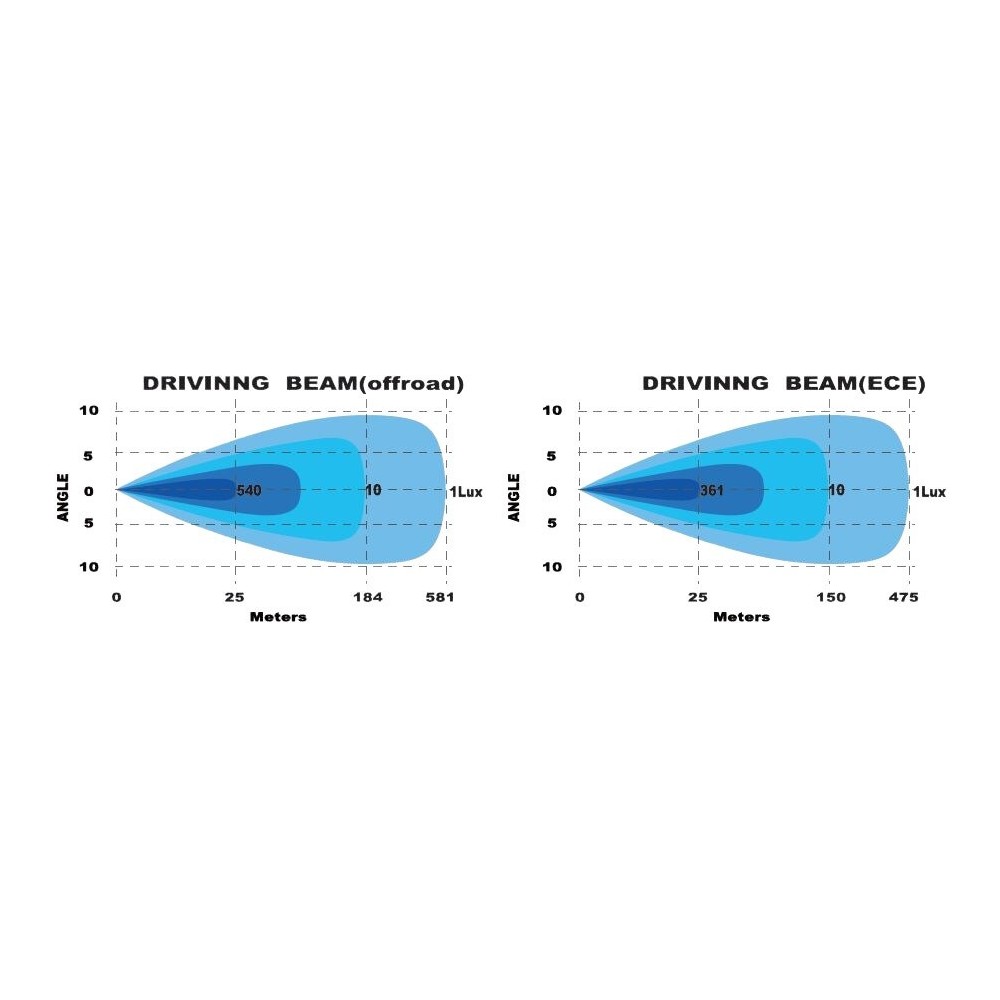

• Beam distance:
  • 581 m (1 lux) OFFROAD
  • 475 m (1 lux) ECE
• Voltage: 9–36 V DC
• LED power: 12 × 10 W Long Range LEDs
• Position light: White / Amber
• Protection rating: IP68 / IP69K

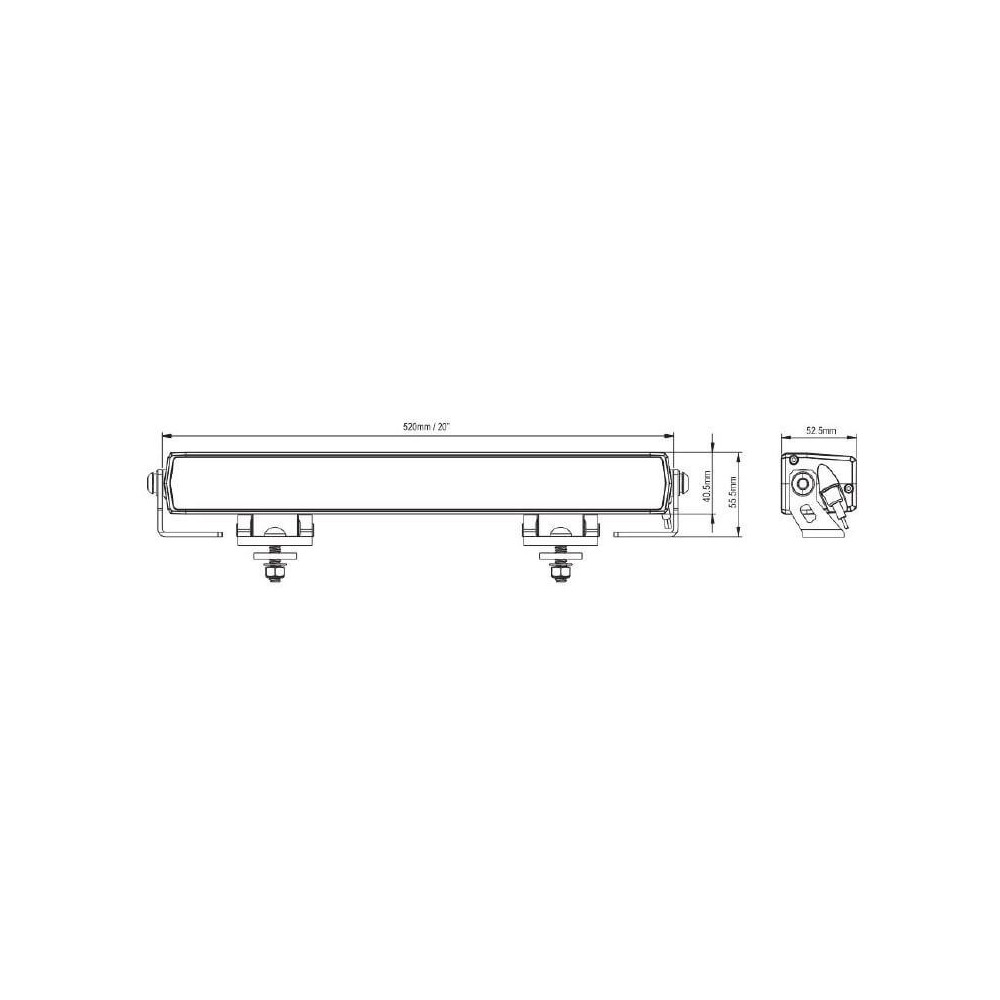

• Width: 520 mm
• Depth: 52.5 mm
• Height: 40.5 mm
• Height with bracket: 55.5 mm
• Housing: Aluminium
• Lens: Polycarbonate
• Approvals:
  • ECE R112
  • ECE R7
  • ECE R10
  • CE
  • ROHS
  • Ref. No. 50

Package Includes

• Side mounting kit
• Bottom sliding mounting rail kit
