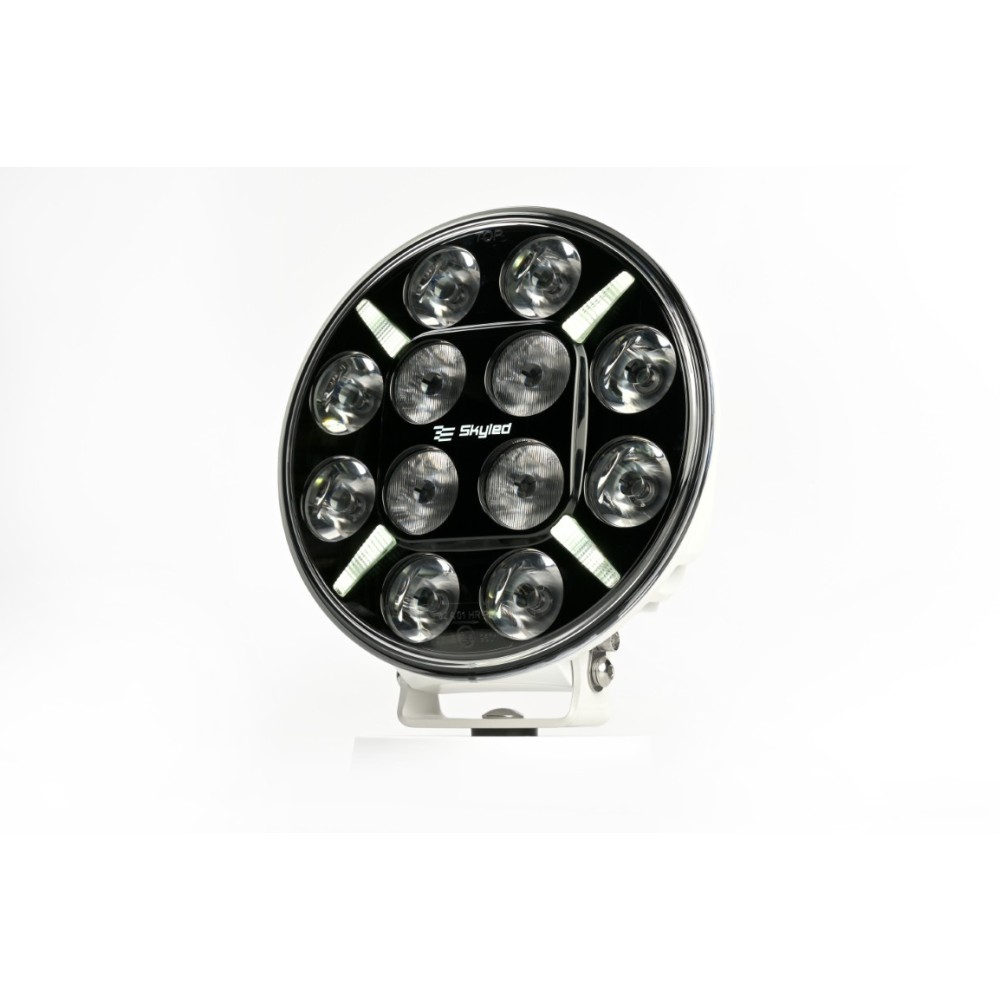

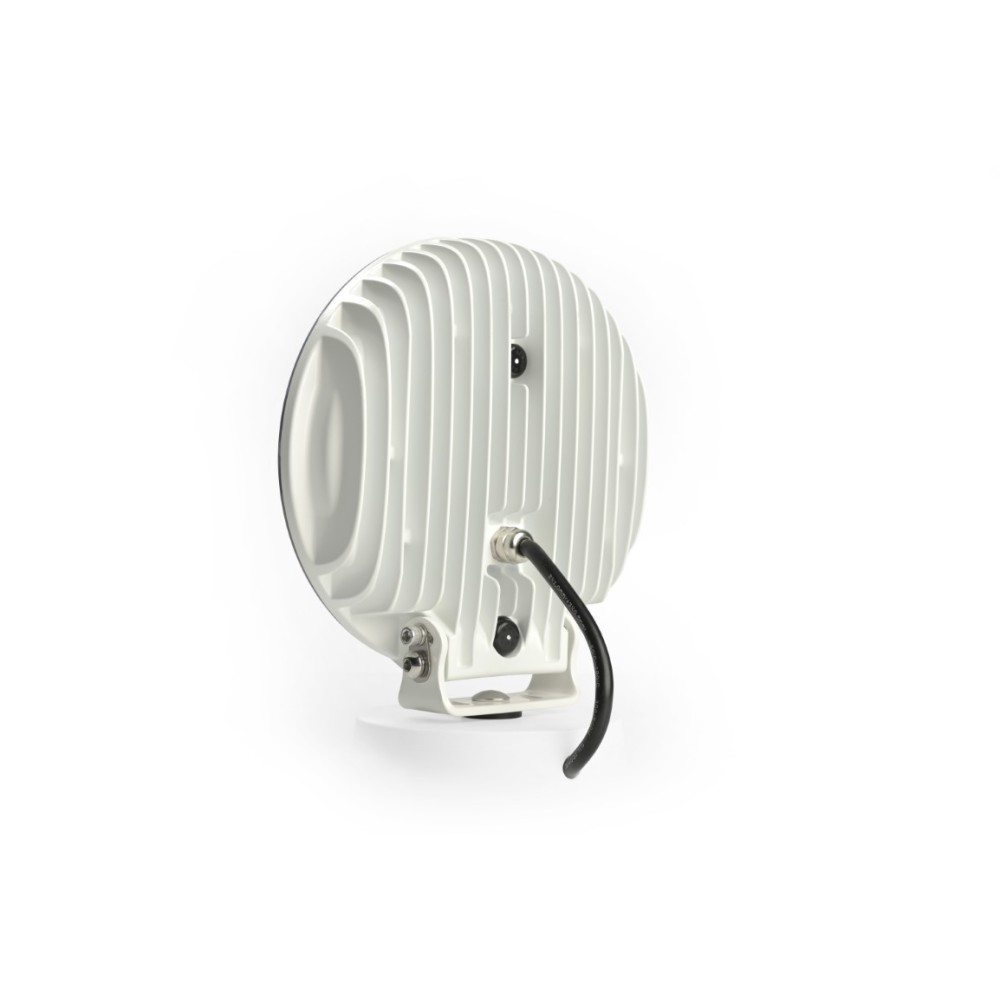

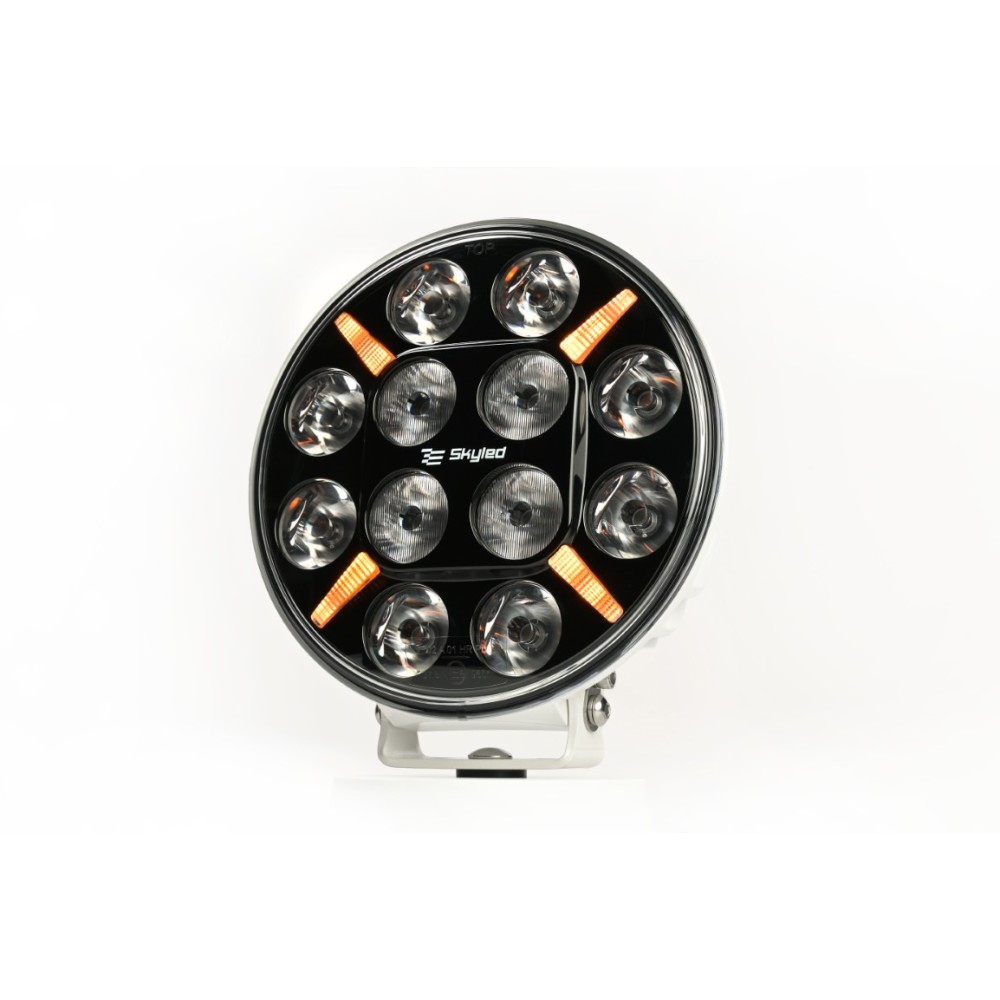

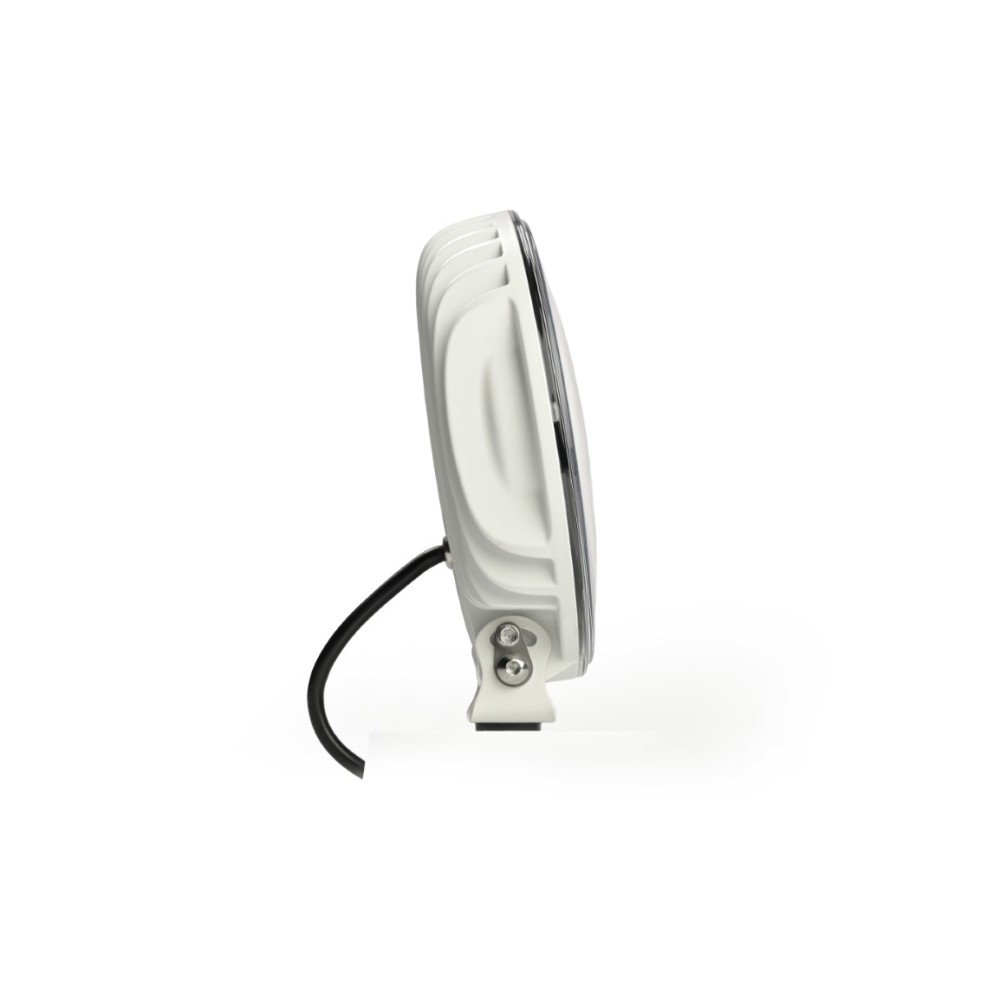

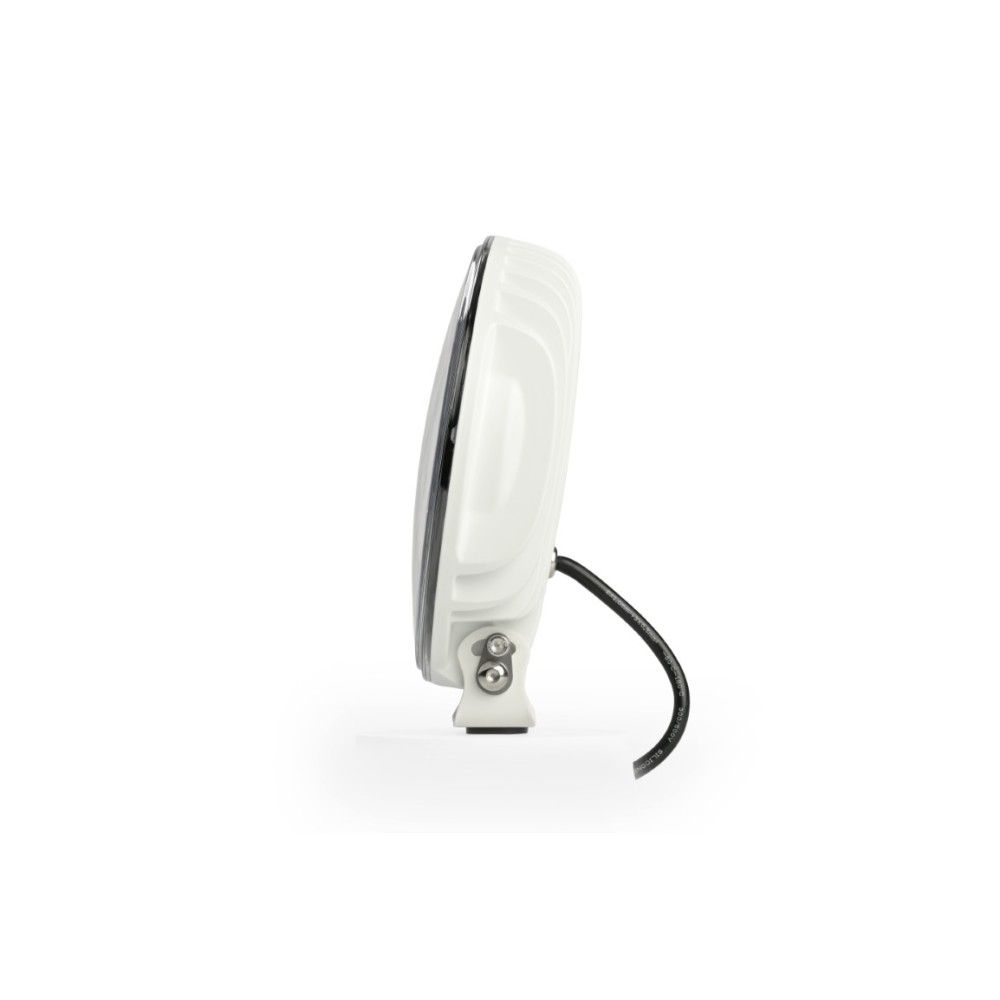

SKYLED Jupiter+ 9X White FI218 FULL LED Spotlight – White Housing, 120W
The SKYLED Jupiter+ 9X is a reinforced, high-performance FULL LED spotlight designed for drivers who demand maximum visibility in darkness and demanding driving conditions. The lamp features an integrated BOOST function, which significantly increases light output and range when switching to OFFROAD mode.
In standard ECE mode, the spotlight provides a light range of up to 407 m at 1 lux, while OFFROAD mode extends the range to an impressive 659 m at 1 lux. This makes the Jupiter+ 9X an excellent choice for trucks, off-road vehicles, special-purpose vehicles and machinery where powerful long-range illumination is essential.
Main benefits
- FULL LED technology for powerful and uniform illumination.
- Two lighting modes: ECE and OFFROAD.
- Integrated BOOST function for increased power and range in OFFROAD mode.
- Up to 659 m light range in OFFROAD mode.
- Up to 407 m light range in ECE mode.
- Combo beam pattern for a balanced combination of wide and long-range illumination.

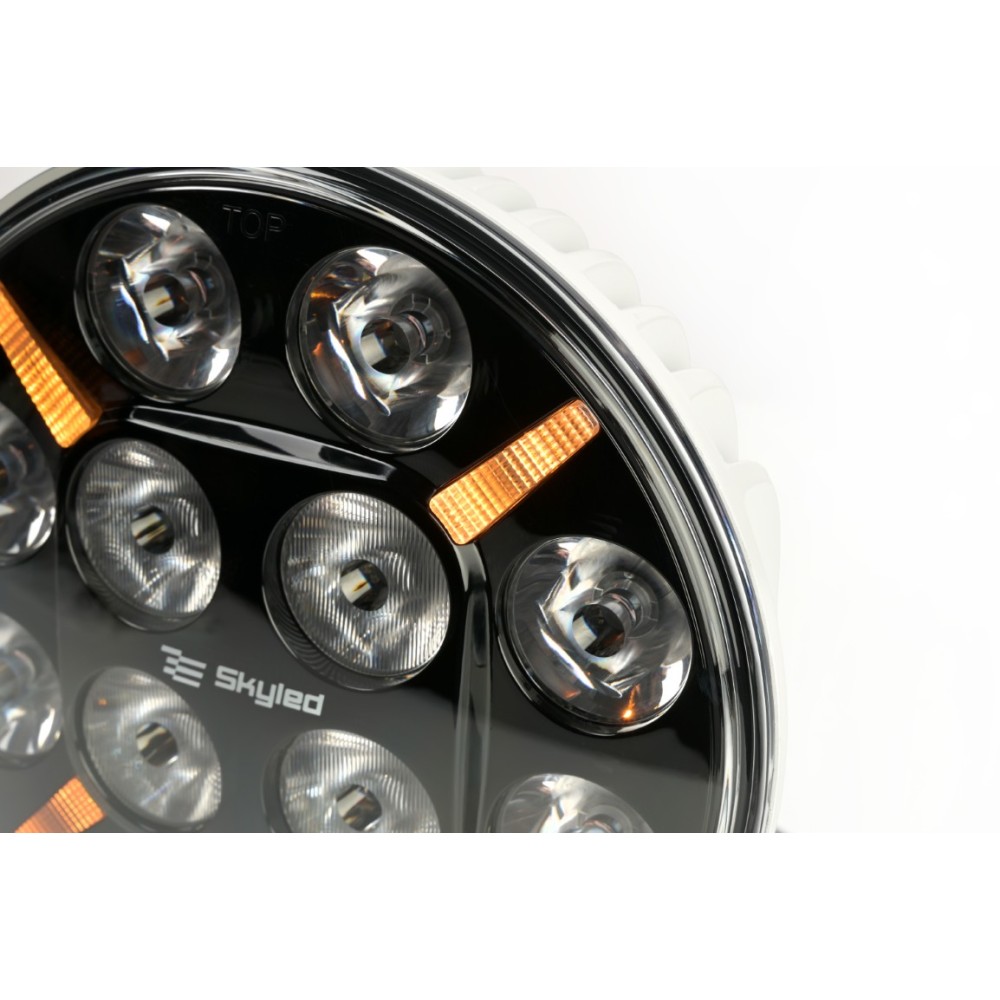

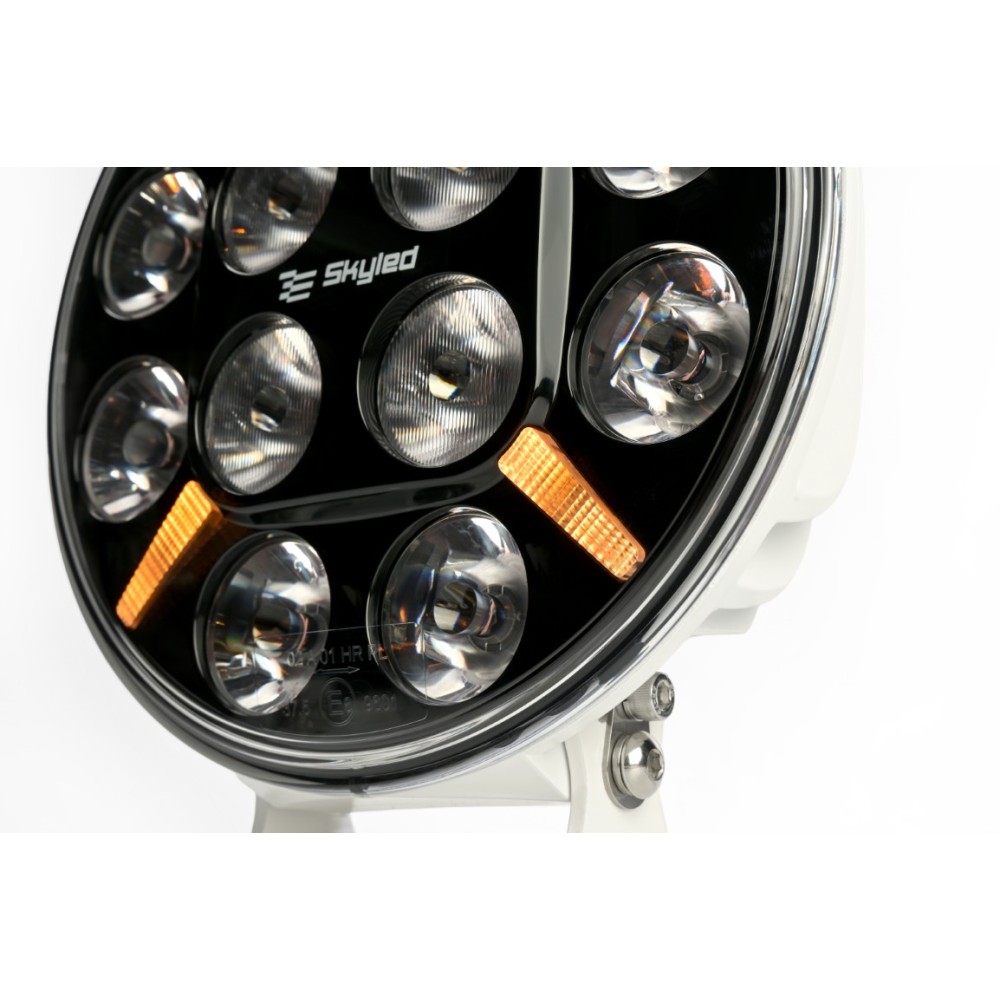

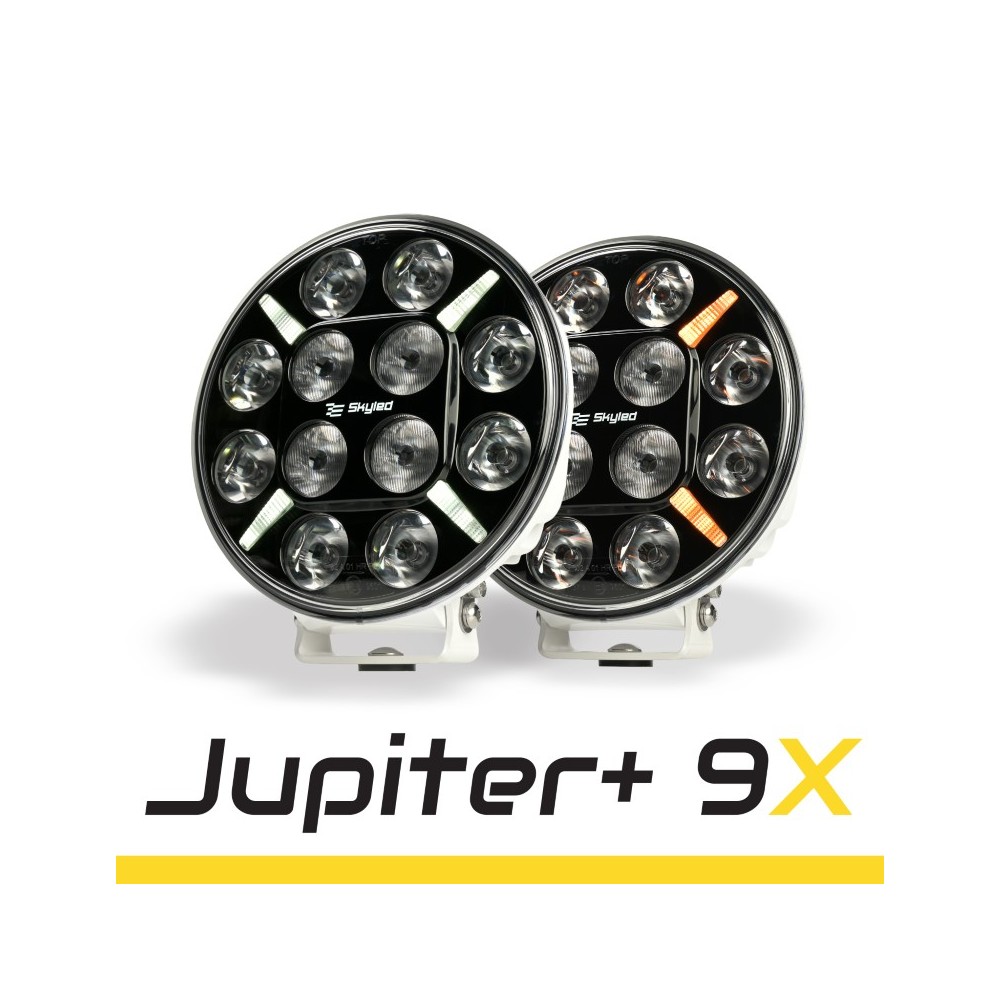

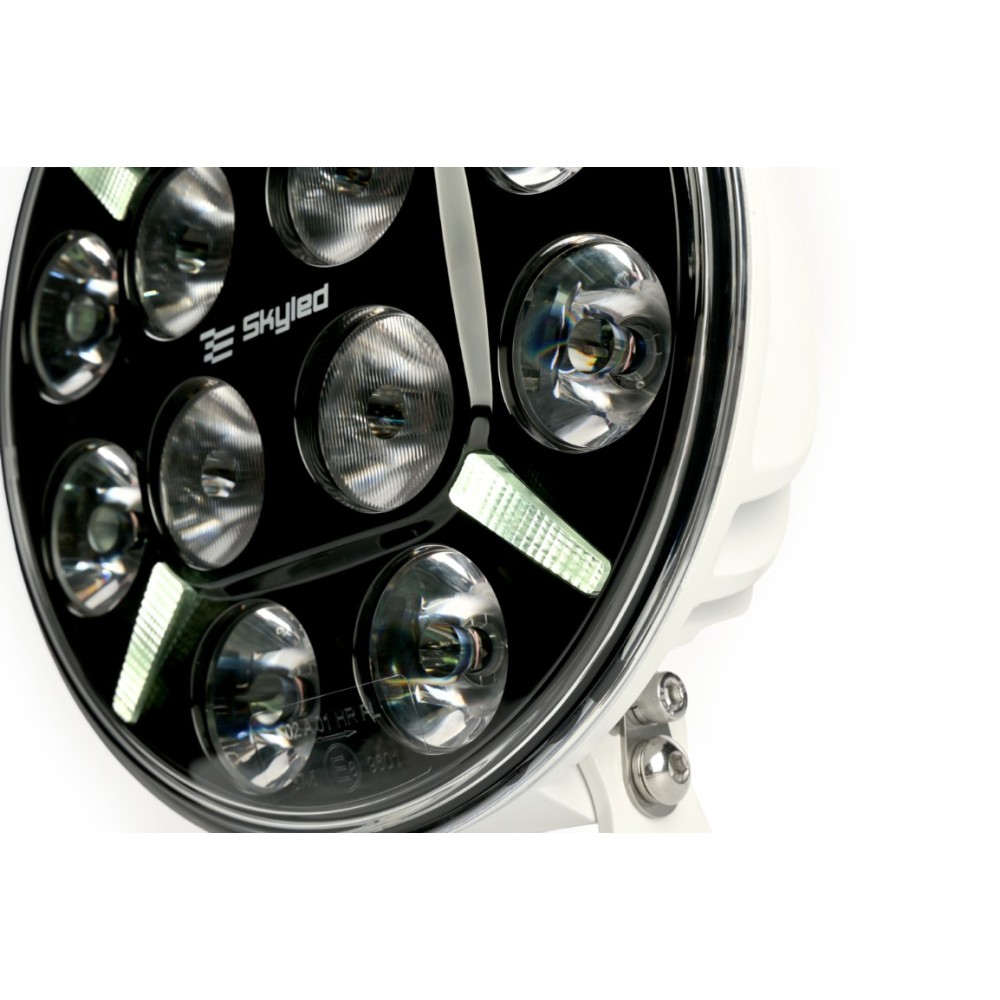

- White and orange position light for improved visibility and a distinctive appearance.
- 9–36 V operating voltage suitable for a wide range of commercial and special vehicles.
- IP68 / IP69K protection for excellent resistance to water, dust and harsh operating conditions.
- ECE homologation according to the specified standards.
Technical specifications
| Specification | Value |
| Lamp type | FULL LED |
| Position light | White and orange |
| Housing colour | White |
| Light mode | Combo |
| Light output OFFROAD | 13,000 lm |
| Actual output OFFROAD | 10,500 lm |
| Light output ECE | 4,200 lm |
| Actual output ECE | 3,500 lm |
| Light range OFFROAD | 659 m / 1 lux |
| Light range ECE | 407 m / 1 lux |
| Voltage | 9–36 V |
| LEDs | 10 W × 12 pcs |
| Load OFFROAD (12/24 V) | 9.8 A / 4.6 A |
| Load ECE (12/24 V) | 3.2 A / 1.6 A |
| Light colour | 5000 K |
| Protection class | IP68, IP69K |
| Weight | 1.5 kg |
| Diameter | 218 mm |
| Depth | 70 mm |
| Height with bracket | 233.5 mm |
| Homologation | ECE R7, R10, R112, CE, RoHS |
The SKYLED Jupiter+ 9X combines powerful LED performance, rugged construction and modern styling in a compact 218 mm housing. The white housing and white/orange position light create a distinctive look, while the impressive 659 m range in OFFROAD mode provides excellent visibility in demanding conditions.
